HP 7 1800 Motherboard Replacement

Written By: TMD
  • Comments: 1
HP 7 1800 Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 15 minutes

Introduction

The motherboard could be the root of many problems of your HP 7 1800. This guide will aid you in replacing the motherboard.

  1. DUXPN4HB5neYxC23
    DUXPN4HB5neYxC23
    SyB1LJLacMFR6bT4

    • Carefully insert a Spudger into one of the corners of the tablet.

    • Slide the Spudger along the edge popping the tabs out along the way.

    • Be careful not to break the tabs.

  2. QKDSu2Pc6nrqRxLw
    QKDSu2Pc6nrqRxLw
    QCRNuIKNCJX4nrRf
    KRAbXpceNZbnaBjA

    • Slide the Spudger under the battery to lift it off the adhesive.

    • Gently pull the cable connection from the motherboard using tweezers.

  3. EgCr4PRVKmCEbM63
    EgCr4PRVKmCEbM63
    hUplyrRQRquKdGmc

    • Remove the larger ribbon cable by gently flipping the beige latch and pulling it out with tweezers.

  4. jCKEZvNLrTebM3gk
    jCKEZvNLrTebM3gk
    tSJXKdwnTm5RgjEA

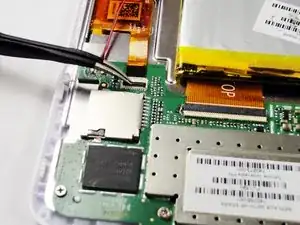

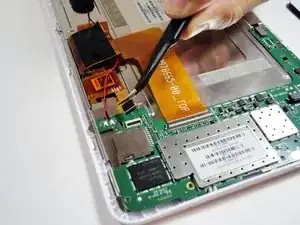

    • Remove the smaller ribbon cable by gently flipping the black latch and pulling it out with tweezers.

  5. VO4AbvK6EQxXvWaP

    • Remove the following 7 screws:

    • Six 4.17mm Phillips #00 around the motherboard.

    • One 2.67mm Phillips #00 next to the front facing camera.

    • The 2.67mm screw circled in yellow is notably shorter than the other 6 screws circled in red.

  6. vPyLOpH23RBH3GXP

    • Gently pry the front facing camera plug up and off of the motherboard.

  7. S5LSpZYn12ecEKcl

    • Carefully lift the motherboard directly up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
