HP 15-dy2702dx Trackpad Replacement

Written By: Zander Herbold
  • Comments: 0
HP 15-dy2702dx Trackpad Replacement

Difficulty

Moderate

Steps

14

Time Required

25 - 50 minutes

Introduction

This is a guide that explains how to replace the trackpad for the HP 15-dy2072dx. The trackpad may need replacement in case it stops working, cracks, or wears out.

The trackpad is responsible for allowing users to move their pointer and click on items without the need for a external mouse. Trackpads are usually found on laptop to aid with portability.

  1. PMhW5AyEaxKyXtLI

    • Remove both of the rubber strips to uncover the hidden screws.

    • You can use a prying tool to help lift an end.

  2. cv2Oqd5MydWH4A2t

    • Unscrew all 8 Phillips #0 screws on the bottom panel:

    • Two M2.5x6

    • Six M2x6

  3. SDSw66QQkoqIqqPU
    SDSw66QQkoqIqqPU
    iGXQgqaQvouWF5pe

    • Flip the laptop over and open the lid.

    • Separate the bottom panel from the main body by using the iFixit opening tool.

    • Ensure that the bottom panel is completely separated along the edges.

  4. N5TasLT3E3GW4PdZ
    N5TasLT3E3GW4PdZ
    OJM1NqvV1KpCVsXE

    • If you can lift the laptop like shown in the first picture, the bottom panel is nearly separated.

    • Close the laptop to allow the back edges to fully separate

  5. KXa4nAmuyVn4Q42w
    KXa4nAmuyVn4Q42w
    xt3tPjNKZIdGydUP
    EHgZawoF63pRaqOG

    • Flip the laptop over and carefully remove the lower case.

  6. 4ALBNqoTv2XrXnum
    4ALBNqoTv2XrXnum
    CZsPSamJHKAson6s

    • Remove the five M2x6 screws that secure the battery with a Phillips #0 screwdriver.

  7. HWZtORQIL31igslr
    HWZtORQIL31igslr
    sAGfFDRDG5tAAvXH
    OQ1tIVahbf1MD4RY

    • Grab the sides of the battery and gently pull the battery until it disconnects from the connector on motherboard.

    • Lift the battery up and out.

  8. vTdSewM4IiMNYKvn

    • Find the trackpad.

  9. EDyXOirXoUMpVHYb
    EDyXOirXoUMpVHYb
    UbjtNUWgPG5PCDMs
    oUEyuTpCQ2gxYplv

    • Unscrew the two M2x6 Phillips screws securing the trackpad.

  10. UHKL2SixZ2ZSMtcl
    UHKL2SixZ2ZSMtcl
    1B2w1SNS1OulsNhM

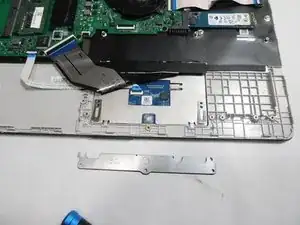

    • Remove the metal bracket.

  11. KoEKnKLLCgtAP5Gh
    KoEKnKLLCgtAP5Gh
    W4g6wUKulYsiBunM
    asYYrKYhmvNLWNVv

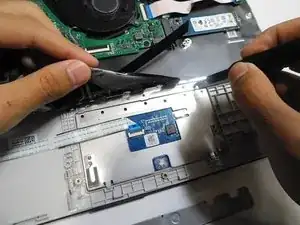

    • Lift the black ribbon covering the screws.

    • Unscrew the top three M2x3 Phillips screws.

  12. BrONJsIQ4tjOFgIu
    BrONJsIQ4tjOFgIu
    TmWLVwJTNlAEbHxn
    oBhstAT5iieW6NMo

    • Flip up the locking flap holding the trackpad ribbon in place.

    • Pull the ribbon straight out of its socket.

  13. OA62JmbciRLUqDly
    OA62JmbciRLUqDly
    ywZlemT34HIGWfIH

    • Peel back the sticky black strip holding the trackpad in place.

  14. ylm2IbipWcdMBCuY
    ylm2IbipWcdMBCuY
    a6VWAEDKPtZ6QKBJ

    • Remove the trackpad from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
