Game Boy Advance LCD Screen and Front Cover Replacement

Written By: Aldo Corona
  • Comments: 4
Game Boy Advance LCD Screen and Front Cover Replacement

Difficulty

Difficult

Steps

10

Time Required

20 - 30 minutes

Introduction

Use this guide to replace your cracked or broken LCD screen or front case.

  1. kXYoUEHAsWGPKEFe
    kXYoUEHAsWGPKEFe
    WmTJlvYkEnEOKX5e
    hARYgMZRr1ggfMnJ

    • Take the battery cover off by releasing the locking tab and hinging the cover away. Remove the batteries inside the cover

    • Do not forget to remove the batteries! This applies to working with any electronic device as working with live electricity may damage the device or cause malfunctions

  2. EdmFB3lCk51Otdqm
    EdmFB3lCk51Otdqm
    HlN6WaAqxPChbau3

    • Remove the six back panel screws using a Tri-wing Screwdriver.

    • Remove bottom back panel screw with a Phillips #1 screw driver. (Image #2)

  3. sSNaRIcxSqRTPVfl

    • Remove the back panel by pulling away with one hand and the front secured in the other hand.

    • Removal of the back panel may cause shoulder buttons and side panels to come loose and fall off.

  4. WkkQIbeHrTlfEGGI
    WkkQIbeHrTlfEGGI
    X3pRpCLRTJHLWFRj

    • Remove left and right triggers by lifting and pulling them away from the system.

    • Do the same for side panels

    • For finicky or jammed triggers only! Adjust and correct triggers and reassemble. Most jammed triggers are caused by buttons misplaced or jammed in its enclosure.

    my side pannel on the right is a little loose how do i fix it

    Mark -

  5. RRebCeaukHvKwKfZ

    • Remove the gray On/Off Switch by pulling up and away from the unit. Replace with another switch if necessary.

  6. JvCo1AeCraFKyq3u

    • Remove the three screws on the circuit board with a Phillips #1 screw driver.

  7. Zt5QVxBOF3KYi6nk
    Zt5QVxBOF3KYi6nk
    pYOYGdlqudvRSNjS

    • Pull circuit board away from the front panel by pulling up at the bottom of the circuit board, keeping the top ribbon still connected.

    • Handle with care! The ribbon connecting the circuit board to the LCD screen can easily be damaged and will require replacement if broken.

  8. PShAUXBUS6tTZQCt
    PShAUXBUS6tTZQCt
    CbINuYWAAbUWDyiy
    CCqwROISYgTlsbHX

    • Remove the rubber button pads from their pockets.

    • Remove the plastic buttons and the D-pad from beneath the rubber pads with tweezers or by hand.

  9. UhZNRtFqNC2lxuSa
    UhZNRtFqNC2lxuSa
    24gSaiyjo13FyyeS
    kwui2hPRIwGoHia6

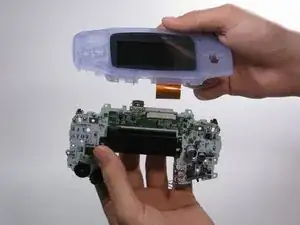

    • Use a spudger/tweezers/fingernail to unlatch the LCD ribbon port by pulling the grey tabs on the sides upwards (towards the top edge of the PCB).

    • Once the LCD ribbon port has been unlatched, the LCD ribbon should very easily slide out and can be removed with zero force using fingers or tweezers.

  10. TXIA3YTHCeXgl1xj
    TXIA3YTHCeXgl1xj
    L1OZTSnJalEbeuMp
    LJfaU6K2mCebAmKX

    • Use the spudger to lift the screen from the front panel. Place the spudger in the space directly left of the D-pad.

    • The screen and the front panel is connected by a black tape that could rip if not removed carefully.

    Friendly warning. My LCD screen broke during this step. The tape can really hold it in there.

    Chris Raybould -

    So do I! So the best solution to avoid it is to airdry the front cover to melt glue...

    Nicolas Puyet -
