Full method - HP Touchsmart IQ506 CMOS Battery Replacement

Written By: Nick
  • Comments: 0
Full method - HP Touchsmart IQ506 CMOS Battery Replacement

Difficulty

Moderate

Steps

11

Time Required

1 - 3 hours

Introduction

Do you need to change the CMOS battery in your HP IQ506, but do not feel comfortable using the quick and dirty method? If so, this version of the guide will be better for you. However, this method has one major downside: disassembly and time involved. Simply put it is inefficient compared to the quick method.

Due to the complexity of this method, you will likely have to spend a fair bit of time disassembling the system for battery access. Depending on how familiar you are with these systems, you may be able to knock the time commitment down significantly.

  1. fojXUQO2TL3SQV5l
    fojXUQO2TL3SQV5l
    m35OjOCUheKVHduD

    • Unplug the system from the power brick.

  2. TcEW5622uqjHZHaZ

    • READ: I did not get the original keyboard with my system and the receiver mine came with was broken. Since the HP OEM keyboard is NLA, I installed a USB hub to use another keyboard.

    • To remove the back cover from the system, the keyboard receiver must be removed. To do this, pull the receiver by the notch to release it. Once you do this, it should come out of the internal USB port to free the back cover.

  3. qsJXjl2OMG212UPZ
    qsJXjl2OMG212UPZ
    s3NyKwJvWqrLN6wA
    5OIfFVQZGUT5bN1c

    • Remove the screw on the RAM door. Once you remove the screw, unclip the door.

  4. GCSVqFXH5PkQoStv

    • (Legacy iFixit driver only): The top hinge screws can be difficult to get to. If you have the classic iFixit screwdriver handle, lock the stand upright and slide it under the stand from the rear to access the top screws. This should not be needed with the 64-bit Manta driver or EET handle. Remove the bottom screws as normal.

  5. HqPHyfJXjj6JoOiN
    HqPHyfJXjj6JoOiN
    TVWnwOIp2ufNB21J
    v6DaaQtMTFvDhqR3

    • It may be easier to remove the top screws from the stand first due to their placement.

    • Remove the stand from the system. Use a Phillips #1 screwdriver to loosen the 4 screws.

  6. YvtIJsu11OulQ4Uj
    YvtIJsu11OulQ4Uj
    1nBxR1rUBWkOwy1B
    XqhePqqRgj3CGQVB

    • Remove the 3 screws in the I/O bay of the system.

    • Remove the 2 screws from under the RAM panel. Note: My system is missing a screw, but it is marked accordingly. Yoy may or may not need to keep this in mind.

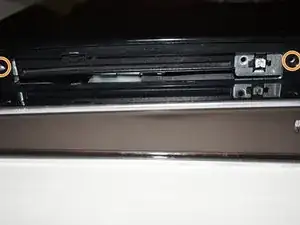

    • Remove the 2 screws from under the ODD cover. Tip: If you are having trouble with this cover, use a spudger or plastic pry tool to remove it.

    • NOTE: ONE SCREW NOT SHOWN DUE TO PHOTO LIMIT. Remove the 2 screws above the model number palte.

  7. gHYcjMByGteHWXAD
    gHYcjMByGteHWXAD
    aFRXdhxboIEfgMHD

    • Remove the 2 screws by the feet on the system chassis.

  8. HB4YFGytRFTIPDiG

    • If you have difficulty removing the back of the system, a spudger may help you release the tabs.

    • Remove the back from the system. The quickest way to do this is to start from the bottom and then unsnap the sides.

  9. dJyR3nwy6sOnRlJ4
    dJyR3nwy6sOnRlJ4
    sVGEuaibltXvhPTy
    ZeHZmyTMUdXloLHq

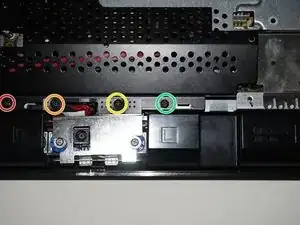

    • The metal EMI shield over the power jack has to be removed to pull the motherboard shield off. This must be replaced when reassembling the system.

    • Remove the 7 screws to reveal the motherboard and other major components. Use a Phillips #1 screwdriver to do this.

  10. YKh6MFClDQhEhqCY
    YKh6MFClDQhEhqCY
    I4iXkpnpNZlRQAF3
    TDyUwEWnleN2UiHI

    • Remove the 6 remaining screws from the motherboard shield. Use the same Phillips #1 screwdriver as you used the first time.

  11. sHyLFhVWVHhmM6u4
    sHyLFhVWVHhmM6u4
    Bob3cJaIe2lKAKsk
    ALVZfuoIJbEVBlaV

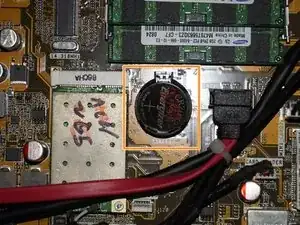

    • If you want to track when you replaced the battery, put a mark on the battery with the month and year so you know when it was replaced. If you cannot write on the battery, putting a hidden note under the memory panel is also an option.

    • Optional: Put a note on the RAM door out of sight or write when the battery was replaced on the new battery.

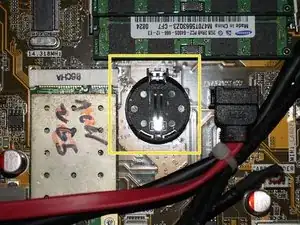

    • Push the tab on the battery in and then remove it. Put the new battery in the reverse way of removal. Once this is done, write when the battery was replaced (Example: 5/16) on the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
