Flash and re-install the firmware of TCA Quadrant

Written By: Formica Fusca
  • Comments: 0
Flash and re-install the firmware of TCA Quadrant

Difficulty

Very easy

Steps

6

Time Required

1 - 5 minutes

Introduction

Guide on how to re-install the firmware, if it became corrupted and the TCA Quadrant is not being recognized.

    • Download and install the driver package from here.

    • TCA Yoke and TCA Quadrant both use the same driver.

    • Press on the Windows button and type "Firmware Update" into the search.

    • Unplug your TCA Quadrant from USB port if you already have it plugged-in.

  4. FhNxCUuCfNG2mXDo

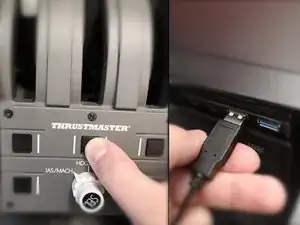

    • Press and hold the button highlighted on the picture.

  5. EPby1VmWHA6OvStE

    • Keep holding the button and connect the Quadrant to USB port of your PC.

    • Once connected, wait a few seconds and let go of the button.

    • You must connect directly to USB port of your PC. It will not work if you connect it to USB port of your Yoke.

    • Your TCA Quadrant should show up in Firmware Updater.

    • Press OK on the Firmware Updater and wait for update to complete.
