DualShock 4 CUH-ZCT1 Charging Port Replacement

Written By: Andy Lam
  • Comments: 1
DualShock 4 CUH-ZCT1 Charging Port Replacement

Difficulty

Moderate

Steps

7

Time Required

20 - 30 minutes

Introduction

The charging port is a common issue that comes with the Dualshock 4 controller as it could be worn overtime. In this guide, we will go through the steps on how to make a simple and easy repair on the Dualshock 4 CUH-ZCT1's charging port.

  1. kSrDiXvKlBOpL51E

    • Flip the Dualshock 4 controller on its back, and use a Phillips #00 screwdriver to remove the four 6 mm screws.

  2. VvJn1cc1JPCBVMIU

    • Slowly lift the backplate onto the front side of the controller making sure not to fully remove the backplate.

  3. SEZVlIpZOdSVgeta
    SEZVlIpZOdSVgeta
    Mew3p2kmGN2dnhOH

    • Remove the ribbon cable from the motherboard of the controller and place the top half of the controller on the side for later.

  4. JuULCXxi1cJdxHZU

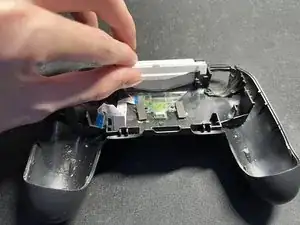

    • Remove the light bar's sub-assembly by gently lifting up the piece.

  5. hdr2oJPxl3icBSjN

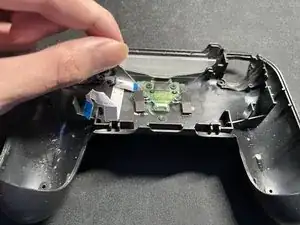

    • Lift the clear plastic piece out of the controller by pulling into the controller and removing it.

  6. PlQ2KilOBeqtBh3O

    • Remove the two 6 mm Phillips screws that are on top of the PCB of the charging port.

  7. wHSOhdBnGocKo52a
    wHSOhdBnGocKo52a
    HiJ3WsHv2XsJ6nFC

    • Gently wiggle the charging port's PCB side to side until it detaches from the controller.

Conclusion

To reassemble your device, follow these instructions in reverse order.
