DualShock 4 Buttons Replacement

Written By: Mark
  • Comments: 0
DualShock 4 Buttons Replacement

Difficulty

Moderate

Steps

13

Time Required

20 minutes

Introduction

The official guide has been updated and can be found here.

Use this guide to replace or fix any buttons on the Dualshock 4 controller.

  1. IOo6WGYZYXe3FgxC

    • Using the Phillips #00 Screwdriver, remove the four 6.0 mm screws securing the rear cover to the controller.

    • Do not forcefully loosen the screws, as it will amount to permanent damage of the threads, making removal impossible.

  2. aeEtZOsBKR5JMM2J
    aeEtZOsBKR5JMM2J
    6h5aVGV6O5ssymAd
    dRONJOXRHeSDdpFL

    • Four fragile plastic clips hold the casing together. You can see their locations more clearly in this guide.

    • The clips help hold the seams together. If you break these clips, the controller will still work.

    • Beginning with the left handle:

    • Pinch the left handle of the controller to introduce an opening.

    • Wedge a plastic opening tool into the opening and slide it up towards the joystick.

    • Pull down on the plier to crack open the casing.

    • Repeat these steps for the right handle.

  3. 2x5OGtJKny4kfdMq
    2x5OGtJKny4kfdMq
    GLyJDACc4Yel1Vc2
    NnxoILTrl2FnxVDa

    • Wedge a plastic opening tool into the case-splittings and pull down to crack open the casing near the following buttons:

    • Share button

    • Options button

    • Split the plastic covers of the controller apart, taking note that they will still be attached by circuit board ribbons.

    • Three small pieces are often released from the framework. To prevent loss, maintain a controlled work field.

    • 2 Trigger Springs

    • 1 Grey Reset Button Extension

  4. bTlYAQTvGVBKbfRV
    bTlYAQTvGVBKbfRV
    4QAyFxp5cWR2HTHW

    • Use tweezers or your fingers to grab and disconnect the head of the battery cable from the motherboard.

    • Only pull on the head of the connector—don't pull on the cable itself.

  5. gp4YHL5LMwLLvcoE

    • Remove the battery.

  6. j5dvHtLN1CWIYwnU

    • Remove the single 6.0 mm Phillips screw found below the battery retainer with the Phillips #00 Screwdriver.

    • Do not forcefully loosen the screw, as it may amount to permanent damage of the threads, making removal impossible.

  7. dBTsEZ1H1cwiwRBY
    dBTsEZ1H1cwiwRBY
    6HH2LEaDBslDCarl

    • Gently detach the touchpad ribbon connected to the motherboard using the blunt forceps. The touchpad ribbon is connected to the motherboard by a connector that flips to tighten and loosen. During reassembly, to reattach the ribbon, the plastic tray will need to be gently removed from the motherboard and the flip-lock flipped up.

  8. pGZDDMtHaRLKnOH1
    pGZDDMtHaRLKnOH1
    QtIZDOrrdju6NBBZ

    • Carefully dislodge the motherboard assembly from the front cover.

    • Vibration motors are loosely attached to the motherboard assembly. Provide support at the two ends to ease the separation.

    • When removing the motherboard assembly, try not to tilt the front cover upside down as the buttons and their covers may fall out.

  9. 4RZyZZw4hY13Fmg6
    4RZyZZw4hY13Fmg6
    JKTifUxFQY2kymQv
    M6gffTDSnZm1Hl2M

    • Successful disassembly of the controller will result in the following three parts, respectively:

    • Motherboard Assembly

    • Front Cover

    • Rear Cover

  10. mheFE6nPTaQktUIv
    mheFE6nPTaQktUIv
    HyvDgJN2GgZLkLVw
    bV6HHvjyx2EXGimV

    • Remove the rubber covering concealing the buttons with your fingers.

    • Use the metal tweezers to then remove the button from its slot.

  11. XhN3RYayuJNEP2js
    XhN3RYayuJNEP2js
    qOFr5ZYGhrRZBsEi
    nXFq6NODVsXKsqk4

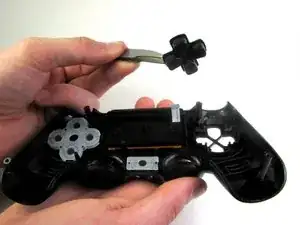

    • To remove the arrow key buttons, use the same process you used for the control buttons by removing the rubber cover and pulling the button out with metal tweezers.

  12. tdLvrEwjnrCd1mkj
    tdLvrEwjnrCd1mkj
    bshEEc6MXnx4OkEw

    • For the share and options buttons, use the metal tweezers to grasp and remove them.

  13. xpmmW2pG5GmCnH2i
    xpmmW2pG5GmCnH2i
    cpogWwNjqaJvupEd

    • In order to remove the PS button on the controller, you must first remove the rubber cover with your fingers.

    • Then using the metal tweezers, remove the PS button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
