Dopo Double Power 7 Motherboard Replacement

Written By: mike pelosi

Comments: 0

Dopo Double Power 7 Motherboard Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

Use this guide to replace the motherboard in your Dopo Double Power 7.

Having a functioning motherboard is crucial because it is the component that holds all of the hardware that allows your device to work such as storage devices, the processor, and the power supply.

If you are experiencing problems such as no power, random errors, or crashes you may need to replace the motherboard of your Dopo Double Power.

A skill you may need for this repair is soldering.

Tools

Step 1

The rear panel is secured to the front case and can simply be pried apart without damage.

Step 2

Carefully, wedge the plastic opening tool in-between the seam that separates both halves of the tablet.

Step 3

Run the plastic opening tool along the seam looking for the clips and lift up on the rear panel.

Step 4

The rear panel should come completely off.

Step 5

Remove any static tape covering the motherboard.

Step 6

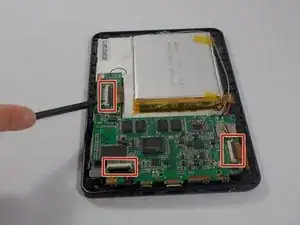

Using the flat end of a spudger or tweezers, remove the three cables connected to the motherboard.
The cables can be disconnected by lifting up on the black section of the socket, as shown by the arrow.
Once the lever is lifted, pull out the cable by gently tugging on it.
