Introduction
A guide on how to replace the speaker inside of a smartphone Doov v15.
Before
Make sure you have a replacement Speaker compatible with the Doov v15.
Work in a clean, well-lit area.
Use appropriate tools like a opening tool, Jimmy, screw driver , and Magnetic mat.
Ensure you have the necessary safety gear to protect your eyes and hands.
Back up your data and power off the phone before you start. For additional help please the step by step guide.
-
-

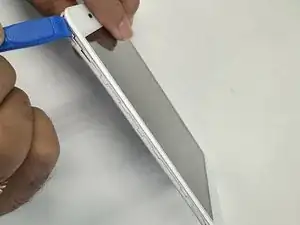

Use the Jimmy to crack open the phone's back cover. Slide it under an edge of the phones back cover and carefully loosen the edge. The casing should pop open slightly.
-
-
-
Use an ifixit opening tool to slide around the phones back cover, loosening it and allowing for an easy removal. It should easily separate from the chassis. Make sure to trace it around the entire phone.
-
Note: Make sure to trace it around the entire phone.
-
-
-
Disconnect the Battery: Once the back casing is removed, the battery will be visible. Use the ifixit opening tool to remove the battery. Place the ifixit opening tool at the top of the battery and pull it back, or simply use your hand to remove it.
-
-
-
Onec you disconnect the battery now use iFixit Precision Bit Driver and iFixit Precision 4 mm Screwdriver Oval Drive Bit (0.5). Place the Screwdriver in the top of screw and rotate it clock wise until the screw comes out.
-
Remember to use magnetic mat to keep those tiny screw safe so that you will not lose it. Repeat the steps and unscrew all the screw.
-
-
-
After finishing unscrewing, use plastic opening tools to gently pry open the device. Be cautious to avoid damaging internal components.
-
Note: slide it around like you did in step 2 and take out the frame.
-
-
-

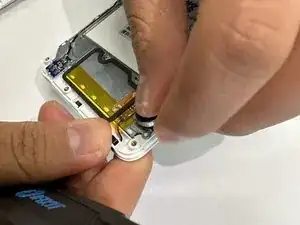

Locate and disconnect the old speaker: After taking out the plastic frame on right bottom corner you will see round speaker, you can test it with the help screw driver, you will feel magnetic power.
-
-
-
Carefully disconnect any cables or connectors attached to it. Remove any screws securing the speaker in place. Gently lift the old speaker out of its position.
-
Replace the new speaker in the place of old speaker and with the help of soldering Gun connect all the cables and any connectors back.
-
To reassemble your device, follow these instructions in reverse order.
