Introduction
A guide on how to replace the battery inside of a smartphone Doov v15.
Before
Make sure you have a replacement battery compatible with the Doov v15.
Work in a clean, well-lit area.
Use appropriate tools like a opening tool, and Jimmy.
Ensure you have the necessary safety gear to protect your eyes and hands.
Back up your data and power off the phone before you start. For additional help please use the step by step guide.
Tools
Parts
-
-

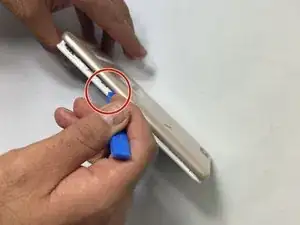

Use the Jimmy to crack open the phone's back cover. Slide it under an edge of the phones back cover and carefully loosen the edge. The casing should pop open slightly.
-
-
-
Use an ifixit opening tool to slide around the phones back cover, loosening it and allowing for an easy removal. It should easily separate from the chassis. Make sure to trace it around the entire phone.
-
-
-
Once the back casing is removed, the battery will be visible. Prepare your replacement battery (BL-C-17) and use the ifixit opening tool to remove the battery. Place the ifixit opening tool at the top of the battery and pull it back, or simply use your hand to remove it.
-
-
-
Install the replacement battery by sliding it downward into the empty slot. Make sure the front of the battery faces you.
-
To reassemble your device, follow these instructions in reverse order.
