DigiLand DL718M Speaker Replacement

Written By: Alayna Knarian

Comments: 0

Difficulty

Moderate

Steps

Time Required

5 minutes

Introduction

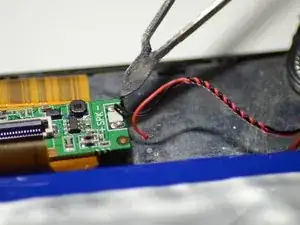

You can see the screen but can't hear any sound from your speaker? Then this is the perfect repair guide that you will need if you ever come across this issue with your DigiLand DL718M device. This repair guide will solve your speaker issue through replacement of the speaker. There is a special skill you will need before you start which is some experience in soldering but it's very simple and short. If you don't know how to solder or have no experience with it, you can visit this link to get started: How To Solder and Desolder Connections

All you need for this repair guide is the soldering iron and the iFixit tool to complete this guide, besides that there is nothing unusual about this repair. Just make sure you don't burn yourself during the soldering process and be safe and responsible.

Tools

Step 1

Remove back panel by wedging the iFixit opening tool on all four sides of the device.

Step 2

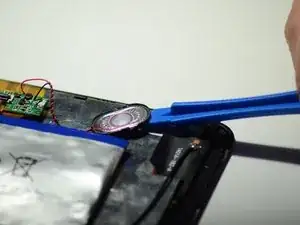

Lift the speaker from the top right corner of the device using an opening tool.

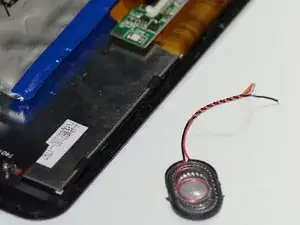

The speaker should come off easily. If it does not, look for any tape or adhesive that may be fastening it to the internal panel of the device, and remove it.
