Cosori TurboBlaze Control Panel Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

Is your Cosori TurboBlaze not properly heating your food? Is it not displaying the correct temperature on your control panel's display? If this is the case, then you can fix this issue with the replacement of your control panel's microprocessor inside the the main circuit board.

  1. KqOJNYLMMTkqHZWn

    • Use an iFixit opening tool to pry open the top lid of your air fryer.

  2. aLFwunCfKXALSrfN
    aLFwunCfKXALSrfN
    inogGn1CtmR2udT1

    • Detach the white wire harness bundle from the main device.

  3. alXlvFQgRLXVsn3O
    alXlvFQgRLXVsn3O
    JtgTec4HgcVRmahl

    • Gently push each small translucent button inward.

    • This will help you detach the control panel from the bottom section of the lid.

    • Pull the white wire harness through.

  4. PRMKnLcBBBRrwvUO

    • Remove the bottom panel of the lid.

  5. GKv4AuE2g1Th5Lvy

    • Remove four 1.2 mm screws from the control panel using a Phillips #1 screwdriver.

  6. iKBdaeVxPpFOcGKI
    iKBdaeVxPpFOcGKI
    m1BYofHhQMVLTwIy

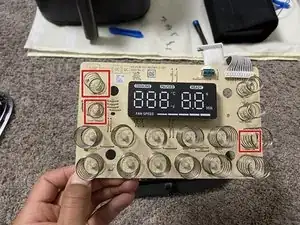

    • Flip the circuit board over to its backside to access the input controls.

    • If any input controls show signs of wear, cuts, or bends, then they must be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
