Introduction
If the triggers on your CRKD NEO S CK24NS controller are unresponsive or not functioning properly, use this guide to replace them.
Over time, dirt or sediment can build up under the triggers, causing them to become unresponsive. Use a cotton swab lightly dipped in isopropyl alcohol to clean around the edges and gaps of the triggers. Let the alcohol evaporate naturally before testing the triggers again. If they still don’t function, follow this guide to disassemble your controller and replace the faulty triggers with new ones.
Ensure the controller is powered off and disconnected from any power source before beginning the repair.
-
-

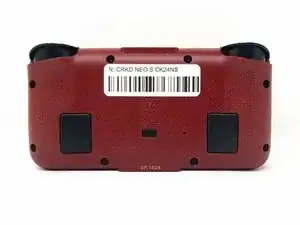

Use a 1.5 mm Hex screwdriver to remove the eight 1.5 mm Hex screws from the back of the controller.
-
Carefully lift off the back panel and set it aside.
-
-
-

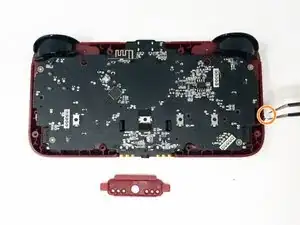

Remove the four 2.5 mm screws holding the motherboard in place using a Phillips #0 screwdriver.
-
Take out the white plastic pieces connected to the motherboard with tweezers.
-
Gently lift the motherboard and set it aside.
-
-
-
Using tweezers, carefully remove the ZL and/or ZR trigger pieces.
-
Insert the new trigger(s) in the same position.
-
To reassemble your device, follow these instructions in reverse order.
