Introduction
Tools
-
-

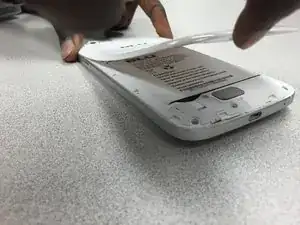

Remove the back cover by lifting at the notch towards the bottom of the phone. Use your fingernail to pry up.
-
-
-

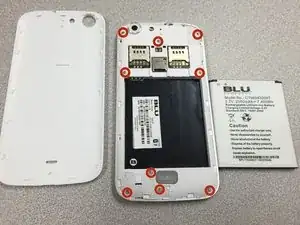

Remove these nine screws with a small philips screwdriver. They are all of the same size
-
There is a small screw hidden under the warranty sticker. You may either remove or poke through it.
-
*WARNING* by doing this you will void your manufacturer warranty.
-
-
-

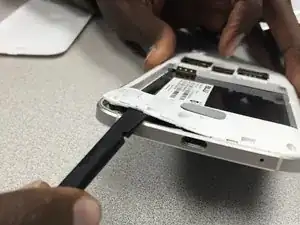

Use the Spudger to gently separate the panel from the frame, starting from the bottom left corner.
-
Then work your way along the edges of the phone.
-
-
-
Continue using the spudger around the back panel of the phone to separate both pieces.
-
Once you have gone around the entire frame, use both hands to pull it apart.
-
To reassemble your device, follow these instructions in reverse order.
