BRCK v1 Battery Replacement

Written By: Jeret Buerger
  • Comments: 0
BRCK v1 Battery Replacement

Difficulty

Moderate

Steps

11

Time Required

25 minutes

Introduction

This guide will use a hex 2.0 head to open the case, as well as tweezers to disconnect and remove the motherboard. This will allow you to access the battery located at the bottom of the case.

  1. rKFZjLAHOcUbQkma

    • Stand the device on its side so the antenna is sitting on the top.

  2. KOceQjAvYum5UUMi
    KOceQjAvYum5UUMi
    4QSYxfZYiP1uOLls

    • Use the tweezers to grip the neck of the antenna(the part closest to the device).

    • Use opposite hand to twist off the body of the antenna.

  3. hIsSTGQ4eFDvdqf4

    • Place the face of the device showing BRCK face up.

  4. YmU6MudTPLigt6yN

    • Remove the four screws(4mm hex head) on the corners of the device with a Hex 2.0 Screwdriver.

  5. yTbOtBGblLV21Pbr

    • Remove the top cover.

  6. M3yWuR4XO3fOGLDW
    M3yWuR4XO3fOGLDW
    fgVYlCauJhR5gLUA

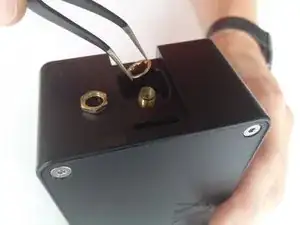

    • Remove the nut and washer from the RF connector, located where the antenna was connected.

  7. hbwIZs3ySQ2A1IhC
    hbwIZs3ySQ2A1IhC
    o5OayQLOiLZiDFGP

    • Unplug the red, black, and yellow wire connection by lifting up.

  8. 46CfWC5OwFOBgiKZ
    46CfWC5OwFOBgiKZ
    RtKKXIUfZHkKsE4E
    KiV5Gx1LDkuTncAE

    • Carefully insert tweezers under the black tab, and lift to release the clip.

    • Slide the ribbon out from under the clip to free the motherboard.

  9. TbDfLALNEpRuYZYF

    • Remove outside rubber covers by lifting them out of place.

  10. RGrgdj6XefLZ2Qum
    RGrgdj6XefLZ2Qum
    dwPqriu1HDu4d4Lk
    kIWLyPbonTLIG63I

    • Slowly lift the motherboard out from the device by lifting it from the end next to the ribbon connection.

    • Lift and pull out of place.

  11. xavADJLY5hfytRrO
    xavADJLY5hfytRrO
    CPGvrpMgBJG5CJdg
    NXlABSpEnIsLgikj

    • Flip device upside down. Hold the device and tap into your other hand with varying force to remove battery.

    • This may take a few tries to remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
