Asus ROG Strix GL702VS LCD Screen (Display) Replacement

Written By: Conor H Allen
  • Comments: 0
Asus ROG Strix GL702VS LCD Screen (Display) Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

This is a step by step process for the replacement or repair of the LCD screen on your Asus ROG Strix GL702VS laptop. If you are experiencing dead pixels or a cracked screen, follow these steps to remove the screen and replace it.

Before fully reassembling, try powering on the computer to ensure all cable connections are working.

  1. hQxX6thDPsGnoMiy
    hQxX6thDPsGnoMiy
    AnSBsCvRnrZhXpXC
    U3PPQtsnvGGugHQq

    • Remove the two screw stickers at the bottom corners of the screen.

    • Remove the two 4mm JIS #0 screws beneath the stickers.

  2. 5fIXFwARRbhig5v5
    5fIXFwARRbhig5v5
    ZZJJfZkb3NHUJYNh
    eYeNIyhsHstndI1w

    • Break the glue between the bezel and screen with a nylon spudger, working around the inside of the bezel.

    • Using an opening tool, lift up the bezel once the glue has been removed.

    • The plastic clips remain so it will have some resistance/snapping noises.

  3. ZPYtOkLy2NJlsMXo
    ZPYtOkLy2NJlsMXo
    oBF63CQuTcoCWDLG

    • Lift the plastic bezel off of the front display panel.

    • The plastic bezel will click when put back on the screen.

  4. IFxSHeFVIujxA1s4

    • Remove the four interior 4mm JIS #0 screws from each of the four metal LCD tabs.

  5. VENRKSnHUtwUXI1h
    VENRKSnHUtwUXI1h
    1BW22MQskWZSanJK
    OPInuvjFoNcjHFcV

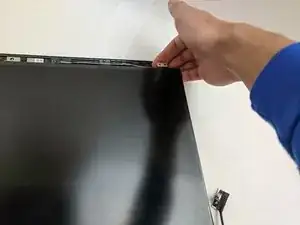

    • Once the LCD display is freed you can lift it up out of the casing.

    • Be careful as the cable remains attached.

  6. lQPrGeRDASssgCFO
    lQPrGeRDASssgCFO
    CgQXQpMsLcDhC1O5

    • On the backside of the LCD, disconnect the LCD cable using a pair of tweezers.

    • Once fully disconnected, remove the LCD and replace it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
