Asus Padfone 2 Vibrator Replacement

Written By: Zach Standridge
  • Comments: 0
Asus Padfone 2 Vibrator Replacement

Difficulty

Moderate

Steps

5

Time Required

15 - 30 minutes

Introduction

  1. ZDZcLxYfymLW6WlD

    • Hold down the power button

  2. p3jcinMXhgRXkvqI
    p3jcinMXhgRXkvqI
    QSUKYmJSRvYCWbam
    KkVRqddLtXyuKcC5

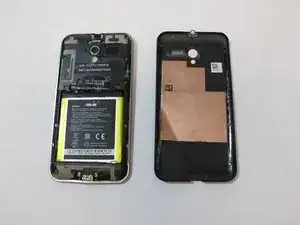

    • Use plastic opening tool to pry off the back cover of the phone.

  3. ApSCXPo2MfYUseJ2
    ApSCXPo2MfYUseJ2
    ugAQ3SAHFpP4Gbic
    aPSYpjJadHoXGHhk

    • Remove the warning sticker that covers the battery plug and connecting cord.

    • Look for the widest gap on either side of the battery. Using the plastic opening tool carefully lift battery out.

    • The battery is held down with adhesive. Be careful not to damage battery or connecting cord.

    • Disconnect battery connecting cord using tweezers.

  4. fbwHDERjgboviJfN
    fbwHDERjgboviJfN
    VRpBDHqXhd2AJ1jb

    • Use T5 Torx screwdriver to remove 14 screws from internal back plate.

    • Use of magnetic pad will help with keeping track of screws.

    • Once screws are out, remove the plate.

  5. fQR4hMDXchFfHxYW
    fQR4hMDXchFfHxYW
    BbsDYfNcpgfd4CMo

    • Use tweezers to remove motor from housing, pulling the plug downward away from the phone.

    • Use tweezers to unplug the device from the circuit board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
