Asus GL551JW-AH71 RAM Replacement

Written By: William Kelley
  • Comments: 0
Asus GL551JW-AH71 RAM Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

This guide outlines how to replace the RAM in the Asus GL551JW-AH71.

  1. OvSM2LE3qTtMyKow

    • Close the device and lay it upside down.

    • Unplug the device and make sure the device is powered off before removing the battery.

  2. SDSsQLoJ1sEuiWUH
    SDSsQLoJ1sEuiWUH
    BWUxnmGqLYMRYDXW

    • Move the battery eject button to the right. The battery will be ejected.

  3. LS1RJGadbtsdfVVP
    LS1RJGadbtsdfVVP
    FT2aibGdBChy11Ym

    • Grab the battery and remove it from the device.

  4. 3skoMUXigNyK1SOH
    3skoMUXigNyK1SOH
    ADahYgMNaAXlSiYE

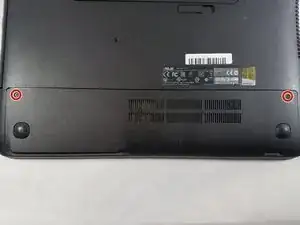

    • Using a Phillips #00 screwdriver, remove the two 11mm screws that hold the access panel in place.

  5. XPHNTJZUaib5mwAR

    • Remove the access panel by lifting it up.

  6. hQstU4vVmyKhOaoq
    hQstU4vVmyKhOaoq
    JPPESqNvgGg5Fh3Y
    PJsRa21e6aSCEaDf

    • Locate the tabs holding the RAM chip in place.

    • Push the tabs in an outward direction from the RAM and the RAM will be released.

    • Gently remove the RAM from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
