ASUS TUF Gaming F15 FX506HEB-DB74 Lower Case Replacement

Written By: Spencer Day
  • Comments: 2
ASUS TUF Gaming F15 FX506HEB-DB74 Lower Case Replacement

Difficulty

Moderate

Steps

5

Time Required

5 - 15 minutes

Introduction

Use this guide to replace the lower case on your ASUS TUF Gaming F15 FX506HEB-DB74.

Before you perform this repair, be sure to completely power off and unplug your laptop. Make sure the laptop is not in standby, sleep, or hibernation mode.

  1. QTEpynD4dJlQ5dCD
    QTEpynD4dJlQ5dCD
    uIPUxh1CufR3a1Er

    • Remove the 11 Phillips screws securing the lower case:

    • Seven 11.6 mm screws

    • Two 14.6 mm screws

    • Two 6.1 mm screws

  2. PTVLu5Ys2uOg2lUN
    PTVLu5Ys2uOg2lUN
    ZQQvBZTRurlWXdCs

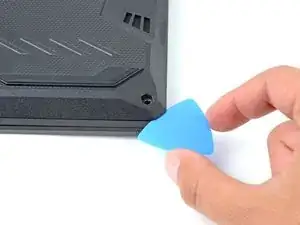

    • Insert an opening pick between the lower case and the chassis on the front right edge.

  3. wIeNMQexu2ntGkSe
    wIeNMQexu2ntGkSe
    2UWpbkQ3jIQaqlFd

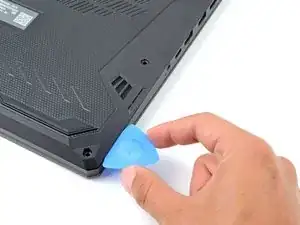

    • Slide the pick along the right edge to release the clips securing the lower case.

  4. 3dqrEcyGUBW2LojQ
    3dqrEcyGUBW2LojQ
    Qf5BtrPoyaXH1cMw
    yiQpggYH2iZtA5aV

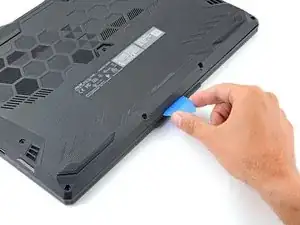

    • Continue sliding the opening pick along the perimeter of the lower case to release the remaining clips.

  5. EeZUQ5YtGLXIkxqG
    EeZUQ5YtGLXIkxqG
    bUuVBZwJjgysL6Tv
    UCAJsZNYKh3rCdPl

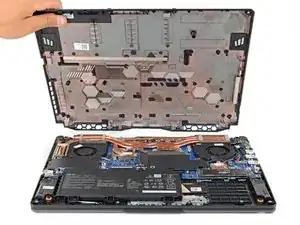

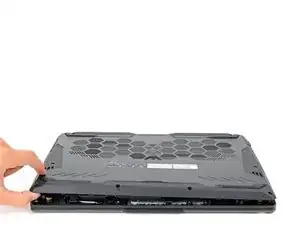

    • Lift the lower case from the chassis and remove it.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-stewards certified recycler.

Repair didn't go as planned? Try some basic troubleshooting, or ask our ASUS TUF answers community for help.

Author

Spencer Day

Member since: 14/09/22

88286 Reputation

2 comments

What's the diameter of the screw? I've been missing a screw and I want to buy online but I don't know what the size. The screw of the lowercase btw. Thanks!

Johnry Cabale -

Hi! All the back cover screw heads are approximately 4.4 mm in diameter. Hope that helps!

Spencer Day -
