ASUS ROG Zephyrus M15GU205L Fan Cleaning

Difficulty

Easy

Steps

7

Time Required

15 minutes

Introduction

Cleaning the fans on your ASUS ROG Zephyrus M15 GU205L is an essential maintenance task to ensure optimal performance and prevent overheating. Dust and debris can accumulate over time, hindering the airflow and causing the fans to work harder. Here's a step-by-step guide to help you clean the fans:

  1. ZhHAueOXtiQy4tiM
    ZhHAueOXtiQy4tiM
    pvOpVVMPwVBFvX45

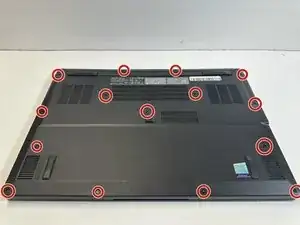

    • Remove fifteen 10 mm screws from the bottom cover using a Phillips #0 screwdriver.

  2. eCCSdZja5mCGeywE
    eCCSdZja5mCGeywE
    BDbSBi1KTXSHPGSg

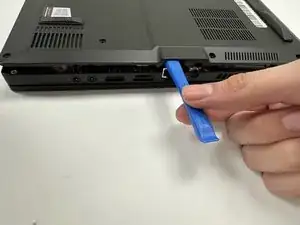

    • Use a plastic opening tool to separate the back cover from the laptop.

    • It is recommended that you separate the laptop cover from the side and run the tool along the edge of the cover to open it.

    • Be careful not to damage the cover when removing it from the laptop.

  3. ISE3h4h2KVNejnJ4

    • Remove six 4.8 mm screws that secure the battery using a Phillips #00 screwdriver.

  4. XUENvvnTbBrIbEFT
    XUENvvnTbBrIbEFT
    ydgk6nacBBj6c6G3

    • Disconnect the 8-pin battery that secures the battery to the motherboard.

    • Use the nylon tipped reverse tweezers to squeeze the edges, then pull out the connector.

  5. 1QWgseexOZDt5PV4

    • Remove the battery from the computer.

  6. gHCSSaSO1einBNn2
    gHCSSaSO1einBNn2
    FIZiyDmh5VHdqkEx

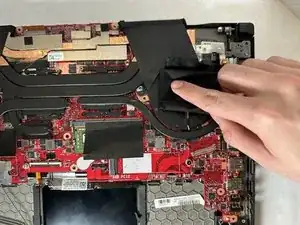

    • Use the microfiber cloth to wipe any surface dust off the fan fins.

    • Wipe lightly as to not push any of the dust inside.

    • Wiping off the dust is optional.

  7. Vpc1NIZhcSQKtYLE
    Vpc1NIZhcSQKtYLE
    A4RAwRDXgKtyhN1U

    • Use the compressed air to blow out the dust from the fan.

    • Use the information on how to correctly use the product you selected.

    • Use the air until you see the results you are comfortable with.

Conclusion

To reassemble your device, follow these instructions in reverse order.
