Introduction

When replacing a hard drive in a laptop, it's important to assess the specific issues you're facing, consider your budget and requirements, and determine whether a simple upgrade or a transition to a different storage technology (like an SSD) would be most beneficial. Additionally, backing up important data before any hardware changes is crucial to prevent data loss.

  1. bXFlenZxmhSPiFhG
    bXFlenZxmhSPiFhG
    yIyKfQbYATaCRMnK
    • Remove ten 2 mm screws using a Phillips #0 screwdriver.

    • Remove the screw in the center using a T4 Torx screwdriver.

    • Use an iFixit opening tool to pry open the back panel.

    • It's normal to hear some cracking, but proceed with caution.

  2. AMrFxaOqWnN2Sjik
    AMrFxaOqWnN2Sjik
    CO44Aynat6iLWKo5

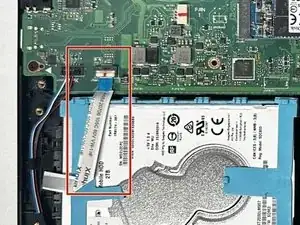

    • Disconnect the white ribbon cable from the connection lever using a Jimmy.

  3. IbUpaVBS421Wj6f1
    IbUpaVBS421Wj6f1
    SwpdDxLsKPJoACDN
    • Using the Jimmy, lift the hard drive out of its slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
