2010-2013 Volkswagen Golf Fuse Replacement

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

This guide will provide step-by-step instructions to replace the Central Electronic Control Unit (ECU) fuse in your  2010-2013 Volkswagen Golf. The Central ECU is responsible for the maths used in your fuel mixture, your engine timing, and the general wellness of your car's engine. If the troubleshooting guide hasn’t been able to help you, this guide will take you through the repair.

Make sure to turn off your vehicle and disconnect your battery to prevent any shorting of electronics or further damage to your car's electrical system before you begin.

  1. JFWgQOWduVnDdUCD

    • Before replacing the fuse, make sure there is no key in the ignition, and the car has been off for at least 20 minutes. If either of these circumstances are unmet, continuing could cause harm to you, and/or a short circuit in the car's electrical system.

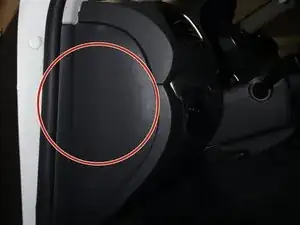

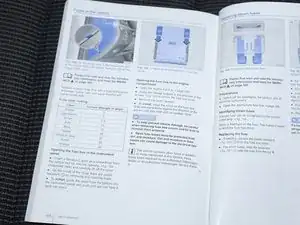

  2. QO5d6BcKMuYYIin4
    QO5d6BcKMuYYIin4
    rYZF1rXHMkn2SfIS

    • Locate the vehicle's fusebox. On this model of the Golf, it will be located on the interior panel of the dashboard on the driver's side of the car.

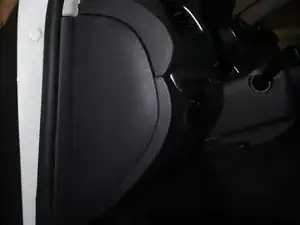

  3. Ej443TKB12TpRKRl

    • Open the fuse box panel: Gently pry the trim piece off of the front of the panel, and place the removed piece in a safe location.

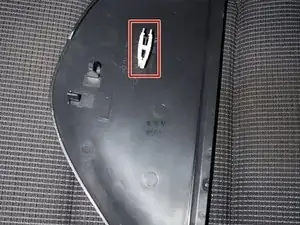

  4. xbdmkPBIQB5olcp1

    • On the back of the fuse box's cover panel, there will be a fuse puller attached. Locate this piece prior to removing any of the vehicle's fuses.

    • Use the attached fuse puller, or something of similar size and material. Equipment of the wrong material or size can damage the vehicle's fuse panel.

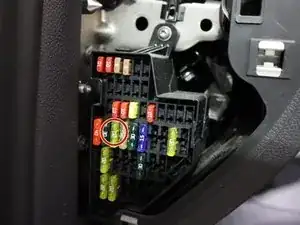

  5. lwByTo1AhTqkWOie
    lwByTo1AhTqkWOie
    1NDRD4YVUmvxrxEY

    • Identify and remove the blown fuse: Each fuse piece is labeled. The correct fuse for the ECU is number 24. Your vehicle's manual will also include a diagram of the fuse box's layout.

    • Note that the number on the fuse does not correspond to the fuse's location, but rather to the amperage rating of the fuse itself.

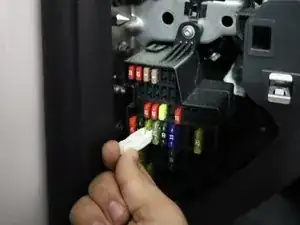

  6. FgGCUkbHAxOfHPQq
    FgGCUkbHAxOfHPQq
    OawruUWRXjjX6tFw
    Q1fwDhP5KbPQE6Qd

    • Install the new fuse: Using the fuse puller, place the new fuse into the empty slot for fuse 24, and ensure that the replacement fuse fits firmly.

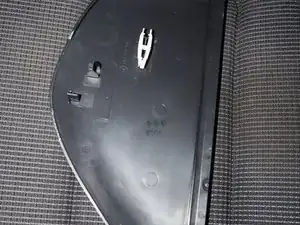

  7. ctMNxYdt4QcnEon2
    ctMNxYdt4QcnEon2

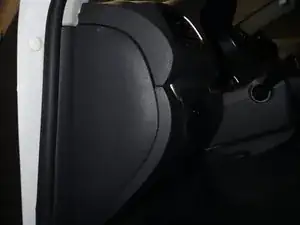

    HO2kBQP4I6RBaTGE

    • Return the fuse puller: Place the puller on the back of the panel cover after the new fuse has been installed.

    • Reinstall the panel cover: Align the panel cover with the frame of the dashboard, and gently apply pressure on the cover until it clicks into place. Confirm that the piece is firmly installed.

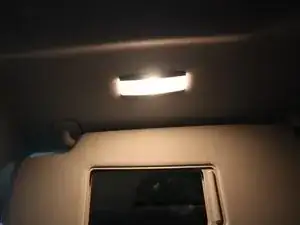

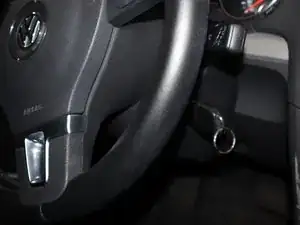

  8. rbxxiSDHI2SXNtca
    rbxxiSDHI2SXNtca
    IIUIUlOQ2mJAoGOX

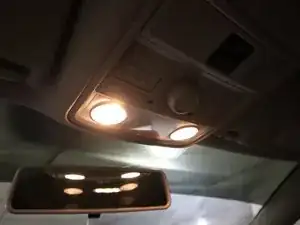

    HO2HPX2S4oDXLH5n

    • Test the fuse: Insert the key into the vehicle's ignition, and place the vehicle into accessory mode. Confirm that the vehicle's lights turn on and function as normally.

Conclusion

If the fuse is working, congratulations! If you're still having trouble, try asking around here to get some help.
