Background
The Asus ROG Strix GL502V is recognized as a lightweight portable gaming laptop. It was released in June 2016 and is presently not listed in the ASUS online store.
Targeted towards gamers in search of a mobile gaming solution, the GL502V addresses the need for gaming performance without sacrificing mobility.
Equipped with robust hardware, it has an Intel Core i7-7700HQ processor, 16 GB of RAM, and an NVIDIA GeForce GTX 1070 graphics card with 8GB of VRAM. Storage options encompass a 120 GB SSD boot drive along with a sizable 1TB HDD storage drive.
At its launch, the laptop was priced between $1,299 and $1,699. Common failure points in laptops, including the GL502V, typically involve the battery, hard drive, cooling system, RAM, ports, and keyboard.
Identification

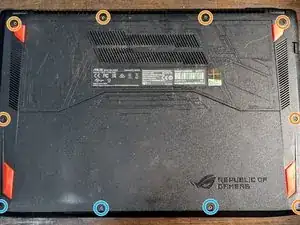

The ASUS ROG branding is prominently displayed on the lid and palm rest area. The model name "GL502V" may be visible either on the bottom panel or near the keyboard area. The width is 15.4 inches and the height is 0.94 inches or 2.4 centimeters. It typically weighs around 4.9 pounds and has a 15.6 inch display.
Technical Specifications
Processor
Motherboard chipset: Intel® HM175
Processor family: Intel® Core™ i7
Processor model: i7-7700HQ
Processor boost frequency: 3.8 GHz
Processor threads: 8
Processor cores: 4
Processor cache: 6MB
Processor frequency: 2.8 GHz
Processor lithography: 14 nm
System bus rate: 8 GT/s
PCI Express slots version: 3.0
Processor operating modes: 64-bit
Tjunction: 100 °C
Bus type: DMI3
PCI Express configurations: 1x16, 1x8, 2x4, 2x8
Thermal Design Power (TDP): 45 W
Processor series: Intel Core i7-7700 Mobile Series
Memory
Internal Memory: 16GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 32GB
Memory Slots: 2x SO-DIMM
Storage
Total Storage Capacity: 1128 GB
Storage Media: HDD+SSD
HDD capacity: 1000 GB
Number of HDDs installed: 1
SSD capacity: 128 GB
Card reader integrated: Yes
Compatible memory cards: MMC, SD, SDHC, SDXC
Optical drive type: No
Display
Display diagonal: 15.6 "
Display resolution:1920 x 1080 pixels
Touchscreen: No
LED blacklight: Yes
HD type: Full HD
Native aspect ratio: 16:9
Graphics
Discrete graphics card model: NVIDIA GeForce GTX 970M
Discrete graphics memory type: GDDR5
On-board graphic card model: Intel HD Graphics 30
On-board graphics card base frequency: 350 MHz
On-board graphics card card dynamic frequency: 1050 MHz
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.4
Discrete graphics card memory: 6 GB
On-board graphics card ID: 0x191B
On-board graphics card family: Intel® HD Graphics
Ports and interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Charging port type: DC-in jack
Weight and dimensions
Weight: 2200 g
Width: 390 mm
Depth: 266 mm
Height: 23.5 mm
